In the field of 3D surface measurement, white light interferometry has become one of the most effective methods. Piezoelectric actuators are able to significantly improve accuracy and speed due to their virtually unlimited resolution and fast response time.

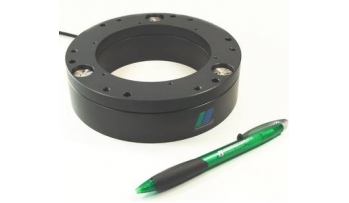

piezosystem jena presents the new MIPOS 16-158 - specifically designed for high precision positioning of optical systems with an accuracy in the sub-nanometer range. The high resolution and fast response time of the MIPOS 16 offer new possibilities for interferometry.
Based on its unique design with a 104 mm aperture and a stage height of 42 mm, the MIPOS 16-158 offers technical specifications matching the requirements of white light interferometry.
The MIPOS 16-158 can achieve a focus range up to 16µm and single step resolution of less than 0.1nm, while operating in a voltage range between - 20 and 130 V. The MIPOS 16-158 is made for integration into metrology set-ups and devices.
